Splash Guard at 13 N.gif

Anti_spill / 2015

designed for SAE Baja George Washington University. This was designed during my first year on the team. Its purpose was to prevent oil spills  while loading the off-road vehicle with gas.



Discover Black Glass: a new carbon fiber seat designed for this car 2 years later.

September 2015 - 2016

My time in 2015-16 consisted of learning how to manufacture essential parts of a car - my exposure to the manufacturing world, especially manually. This was essential to my talents as a designer.



The Team

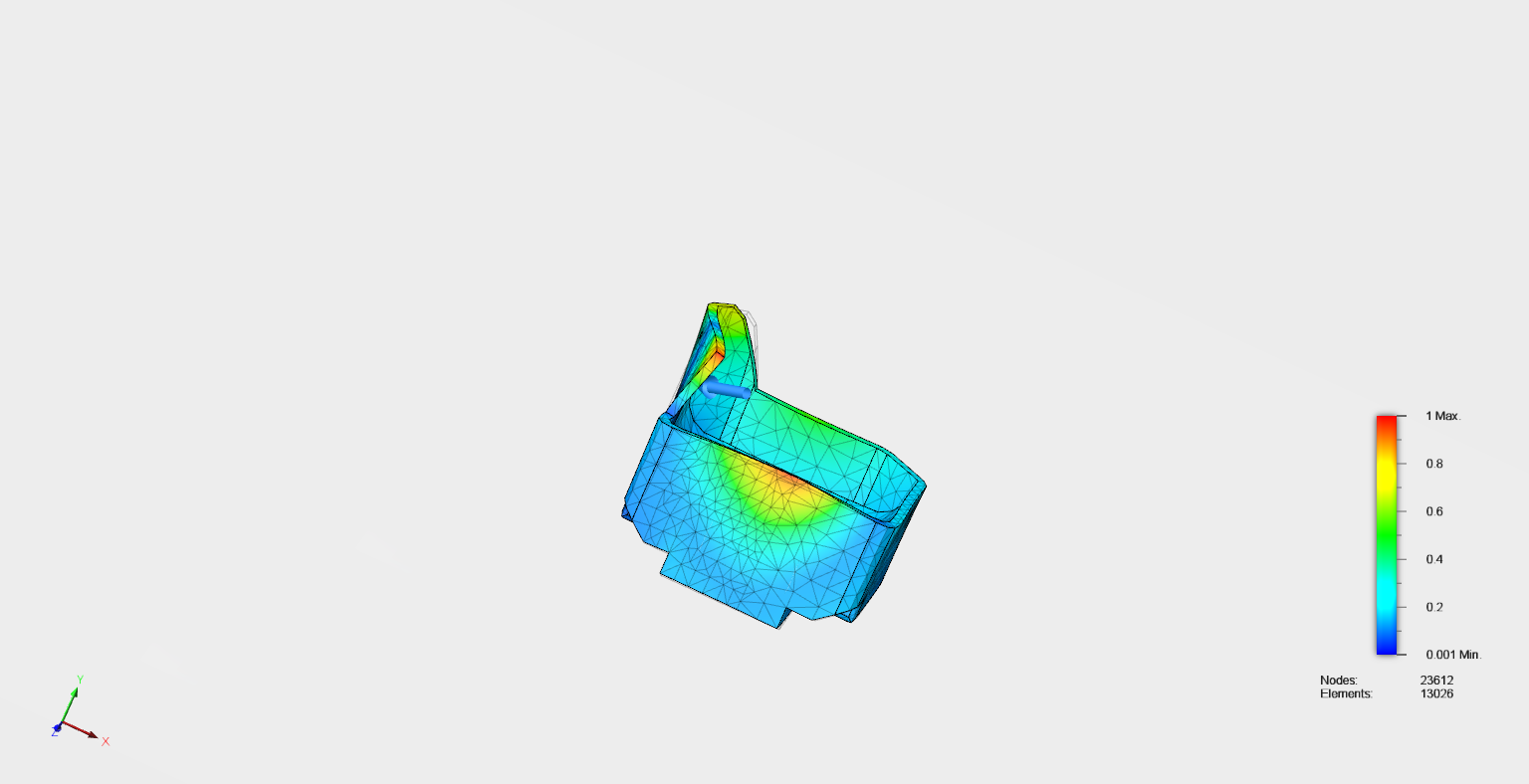

FEA STRESS TEST ON 3D-PRINTED FUEL TANK SPLASH GUARD; THIS TEST ENSURES THAT THERE WILL BE NO BREAKAGE AT HIGH IMPACT IN CASE OF DAMAGE TO CAR.



ROLE / 1ST YEAR

3D printing lead | design "splash guard" to avoid oil spills.

MANUFACTURING

CNC Lathe | Manual Lathe | Manual Mill | TIG Welding | 3D Printing | Drop saw | Bender | Laser cut - sheet metal and wood
Sheet metal | ABS 30% plastic | enamel coat | epoxy coat | Steel piping | Aluminum piping
Fox shocks
