Applying my Bragi internship to a competition project.

November 2016 . revisited april 2017



Imagine if a phone was in your headphone.


Imagine an entire mobile phone's electrical PCB placed inside a set of headphones, designed for how they should be - with new, touch integrated interactivity.

Autodesk logo is a makeshift rendering moment as per competition requirements.

left cushion.png

Final Renderings

MATERIAL

SIZE

Radially knurled aluminum, leather, plastic

dia12 cm . h29cm


CLIENT

COMPLETION

Autodesk Design for Industry

April 2017

Press

Role

Autodesk Instagram

Industrial Designer


skills

Fusion 360: Class B surfacing, rendering, t-splines: organic leather bodies, injection molding: prototyping



Competition Research

  • Bose QC35
  • Bang & Olufsen H6
  • Parrot Zik 3,

Analysis of three headphones analyzing three main headphones:



Exploration: Touch Interaction

Portfolio_ Ali Ahmed48.jpg

Exploration: Mountain Membrane



Imagine an incredibly smooth, thin mesh made of flexible fibers that protrude ridges such that the user feels a slight bump at the slide across the touch interface. And when placed on a desk, the membrane may act as a musical pulsator activated to the bass rhythms of a song. This could unlock interconnected smart devices such that braille could be pulsated at the whim of tracing letters around your environment for deaf+blind users.

This means that the that the outer touch interface must be tapered plastic such that it has the propensity and elasticity to actually move downwards at the touch of a finger to smoothly feel this user experience enhancement.

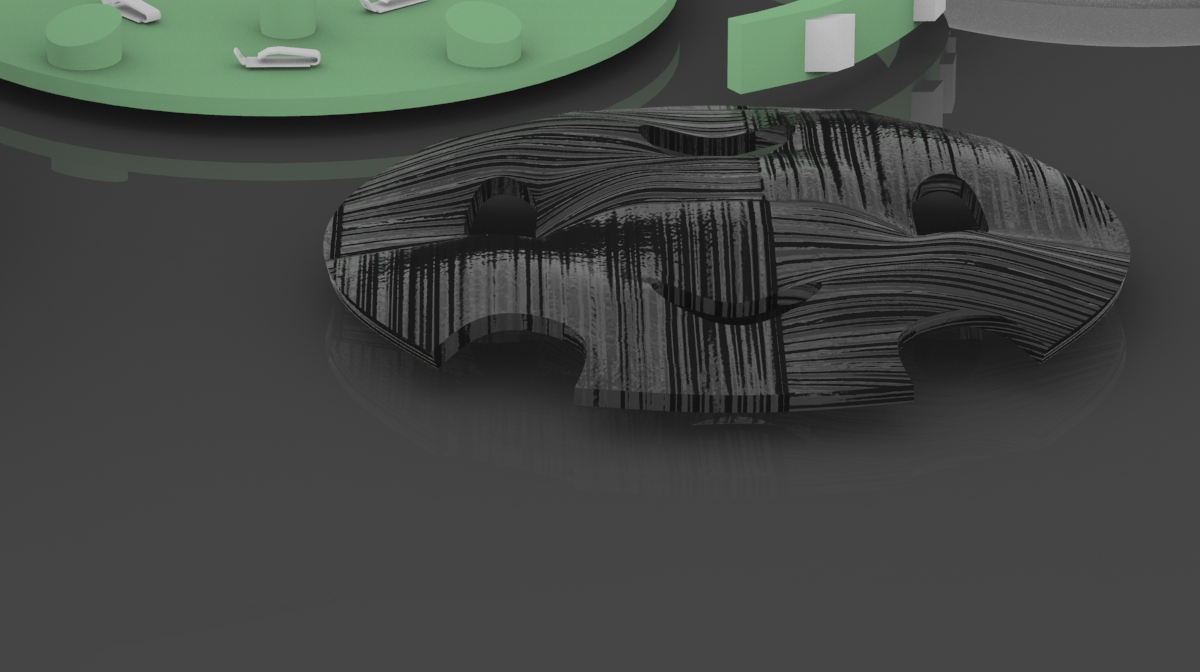

THE MEMBRANE HAS OVAL PORES AT ITS RIM AND INSIDE FOR ELECTRONIC COMPONENTS STICKING FROM UNDERNEATH TO BE ABLE TO INTERACT WITH THE TOUCH INTERFACE. THE PIECE WAS INTRICATELY DESIGNED SUCH THAT EACH RIDGE IS BEAUTIFULLY OFFSET FROM THE TOUCH INTERFACE.

Component Stackup
